Various current and voltage sensors for monitoring of DC and AC electrical circuits.

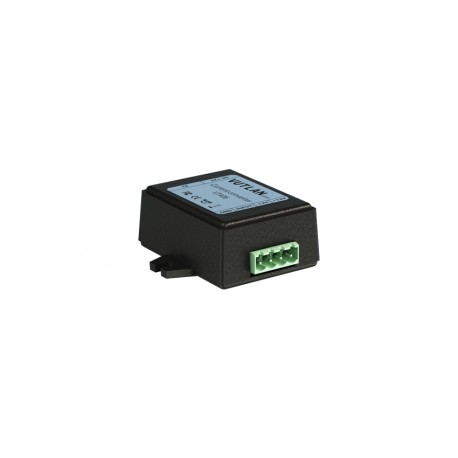

VT406 / DC HOS Sensor Transducer

vt406 dc hos sensor transducerTransducer is used together with HOS-100Q1 dc Hall current sensors and converting data into format of IP monitoring system. The system interface allows you to assign the current meter and to introduce the function data conversion.





HOS-100Q1 / DC Current Transducer

hos-100q1 dc100A Hall transducer is used for measurement of DC current. The system interface allows you to assign sensor and to introduce the function data conversion. VT406 / HOS transceiver can be used together with HOS-100Q1 to convert data into format of IP monitoring system.

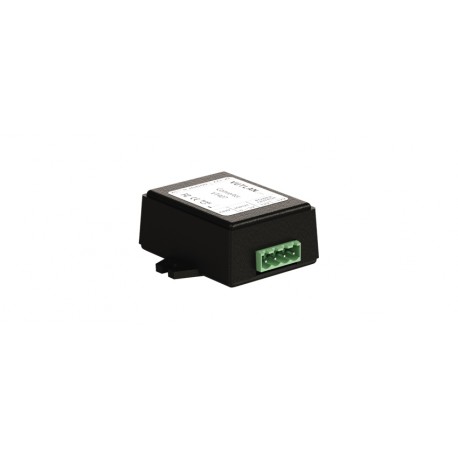

VT407 / AC HAT Sensor Transducer

vt 407 ac hat sensor transducerTransducer is used together with HAT-100Q1 current transducer and transferring data into a monitoring system. The system interface allows you to assign the current meter and to introduce the function data conversion.

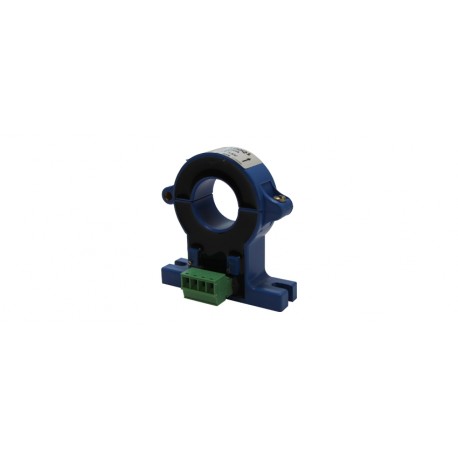

HAT-100Q1 / AC Current Transducer

hat-100q1 / ac current transducer100A transducer is used for measurement of AC current. The system interface allows you to assign transducer and to introduce the function data conversion. VT407 / HAT transceiver can be used together with HAT-100Q1 to convert data into format of IP monitoring system.

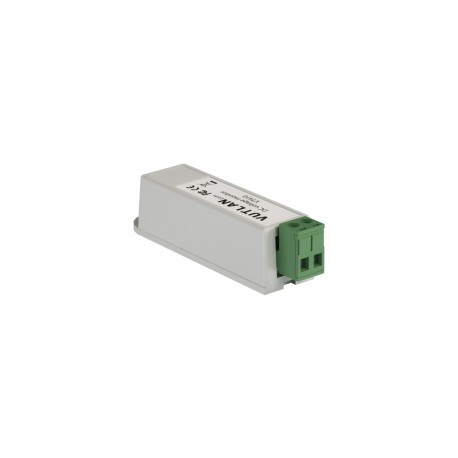

VT410 / DC Voltage Monitor

vutlan VT410 dc voltage monitoringDC monitor is used for measurement of DC voltage up to 60V and converting data into format of IP monitoring system. The system interface allows you to assign the sensor and to introduce the function data conversion.

Only 6P6C RJ12 cable can be used with sensor!

Dimensions Size 60×18×18 mm
Weight 100 g
Inputs RJ-12 / RJ-11
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Mounting Desktop, Wall mount
Power Consumption 100 mW
Components Manufactured in E.U.
Max. distance 50 m
HS Code 9030 33 300
Special Features Isolation - 1 kV, Measured voltage - 0..60 V, Accuracy - 1%.
Package includes Mounting bracket, Sensor, Nuts М4 2pcs, Screws M5 19mm 2pcs, Sticker, Terminal plug 2 pins 5mm 1pc

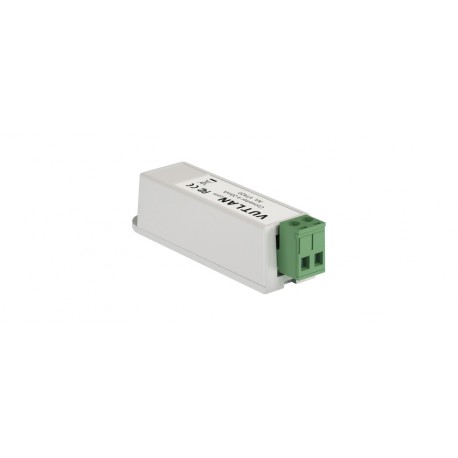

VT420 / Converter 4-20mA

vutlan VT420 converrterConverter of current loop 4-20mA is used for measurement of constant current on 4-20mA from different sensors and converting data into format of IP monitoring system. The system interface allows you to assign the sensor and to introduce the function data conversion.

Dimensions Size 60×18×18 mm
Weight 60 g
Inputs Terminal plug 2pins 5mm
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing)
Outputs RJ11 / RJ12
Mounting Wall mount
Power Consumption 100 mW
Components Manufactured in E.U.
Max. distance 50 m
HS Code 9030 33 100
Special Features Isolation - 1 kV, Measured current - 4-20 mA, Accuracy - 2%.
Package includes Terminal plug 2 pins 5mm 1pc, Sticker, Screw 1pc M5, Cable RJ11/RJ12 to RJ11/RJ12 (2m)

VT520 / AC voltage Monitor

vt 520 ac voltage monitor

Sensor is needed for measurement of AC 90-250V



Dimensions Size 63×66×40 mm
Weight 125 g
Inputs RJ-12 / RJ-11
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Power input 90-240V, IEC C14
Mounting Insert in the socket
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 100 m
HS Code 9030 33 300
Special Features Voltage measured - 90 .. 250 V, Accuracy - 2%.
Package includes Sensor, Cable RJ11/RJ12 to USB 1.8m
