Analog Sensors

Analog Sensors

All analog sensors are connected to analog ports of remote monitoring units or PDUs, determination of the sensor type and connection will occur automatically. Conditions monitored include: indoor and outdoor temperature, humidity, AC voltage, door open/closed, vibration, smoke, movement, water leakage and airflow. All sensors use 4 level thresholds: low alarm, low warning, normal, high warning, high alarm. Sensors VT530, VT540, VT560 allows chain connection. Third party analog sensors can be connected using 4-20mA converter VT420 or 0-10V DC voltage meter VT410-10.

VT 500 / Temprature Sensor



VT500 / Temperature sensor ortam izleme sistemleri

Sensor is needed for measurement of temperature indoors.

Operating temperature: −50… +105°С.

Dimensions Size 60×18×18 mm
Weight 60 g
Inputs RJ-12 / RJ-11
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -50° C - Max.105° C
Mounting Desktop, Wall mount
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 100 m
HS Code 9025 11 800
Special Features Accuracy 1°С
Package includes Sensor, Cable RJ11/RJ12 to RJ11/RJ12 (2m), Screw 1pc M5, Sticker, Mounting bracket

VT 501/ Outdoor Temprature Sensor

VT501 / Outdoor temperature sensor

Sensor is needed for measurement of temperature outdoors.

Operating temperature: −50… +105°С











Dimensions Size ∅7×30 mm, PVC cable 15 m
Weight 340 g
Inputs RJ-12 / RJ-11
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -50° C - Max.105° C
Mounting Wall mount
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 100 m
HS Code 9025 11 800
Special Features Accuracy 3°С
Package includes Clamps, Sensor



VT 510 / Humadity Sensor ( Nem Sensörü)

VT510 / Humidity sensor nem sensörüSensor is needed for measurement of relative humidity 10-95% indoors with relative accuracy 5%.





Dimensions Size 60×18×18 mm
Weight 60 g
Inputs RJ-12 / RJ-11
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -50° C - Max.105° C
Mounting Desktop, Wall mount
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 50 m
HS Code 9025 11 800
Special Features Accuracy 3°RH
Package includes Screw 1pc M5, Sensor, Sticker, Cable RJ11/RJ12 to RJ11/RJ12 (2m), Mounting bracket



VT520/ AC Voltage Monitor

vt 520 ac voltage monitoruSensor is needed for measurement of AC 90-250V



Dimensions Size 63×66×40 mm
Weight 125 g
Inputs RJ-12 / RJ-11
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Power input 90-240V, IEC C14
Mounting Insert in the socket
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 100 m
HS Code 9030 33 300
Special Features Voltage measured - 90 .. 250 V, Accuracy - 2%.
Package includes Sensor, Cable RJ11/RJ12 to USB 1.8m

VT530 / Access Sensor

vt 530 ACCESS SENSOR VUTLAN At installation on doors, windows, etc., sensor controls status of door, window: opened, closed.



Dimensions Size 60×18×18 mm
Weight 106 g
Inputs RJ-12 / RJ-11
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Mounting Mounting bracket included
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 150 m
HS Code 8531 10 300
Special Features Daisy chain
Package includes Sensor, Magnet, Cable RJ11/RJ12 to RJ11/RJ12 (2m), Screws M5 19mm 2pcs, Washers M4 2pcs, Nuts М4 2pcs, Stickers 2pcs, Mounting bracket

VT531 / Optical Access Sensor

vutlan vt 531 optical access sensorsAt installation on doors, windows, etc., sensor controls status of door, window: opened, closed. Max. view distance of optical sensor is 3-4 cm. Min. view distance of optical sensor is 1 cm.



Dimensions Size 60×18×18 mm
Weight 106 g
Inputs RJ9
Outputs RJ-12 / RJ-11(6p4c)
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -10° C - Max.80° C
Mounting Mounting bracket included
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 150 m
HS Code 8531 10 300
Special Features Optical sensor: max. view distance 4cm
Package includes Sensor converter, optical sensor, mounting bracket, 2m RJ11/RJ12 cable, screws, nuts, bolts and a sticker.

VT540 / Vibration Sensor

vutlan vt 540 vibrat,on sensors

At installation on walls, windows, etc., sensor controls vibration.

Chain connection is possible.


Dimensions Size 60×18×18 mm
Weight 60 g
Inputs RJ-12 / RJ-11
Operating characteristics Humidity : Min. 5% - Max. 95% (Non-Condensing), Temperature : Min. -10° C - Max.80° C
Mounting Mounting bracket included
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 150 m
HS Code 9025 11 800
Special Features Daisy chain
Package includes Sticker, Sensor, Cable RJ11/RJ12 to RJ11/RJ12 (2m), Screw 1pc M5, Mounting bracket

VT560 / Smoke Dedektor

vutlan VT 560 smoke dedektor, duman dedektörü

Detector detects smoke indoors. Operating temperature: 0… +70°С.

Chain connection is possible.


Dimensions Size Ø100×45 mm
Weight 290 g
Inputs 2 x RJ-12
Status Indicators Error LED
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Mounting Mounting bracket included
Power Consumption 100 mW
Components Manufactured in E.U.
Max. distance 150 m
HS Code 8531 10 300
Special Features Daisy chain, Sensetivity 0,05 — 0,2 db/m

VT 590 / Spot Water Dedector

vutlan vt590 spot water dedector


When water is in contact with the metal cores, the sensor indicates the emergence of moisture.

Attention! Metal cores are detectors of water, mount strictly downwards as close as its possible to a floor.











VT591 / Water Leak Rope Sensor

vutlan VT 591 water leak rope sensor-su kaçağı sensoru

When water is in contact with detection cable sensor indicates the emergence of moisture. Water detection cable 50 is ordered separately art. SC-WDC!

If sensor is constantly responding to high water levels, replace it with a level sensor.

Dimensions Size 60×18×18 mm
Weight 60 g
Inputs RJ-12 / RJ-11
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Mounting Wall mount
Power Consumption 60 mW
Components Manufactured in E.U.
Max. distance 100 m
HS Code 9025 80 400
Special Features Response time: 15 sec., Recovery time: Depends on how fast the sensor dries out
Package includes Sensor, Mounting bracket, Nuts М4 2pcs, Screws M5 19mm 2pcs, Sticker, Terminal plug 2 pins 5mm 1pc



WDC / Water Dedection Rope

vutlan Water dedection rope

When water is in contact with detection rope, sensor indicates the emergence of moisture. Water detection cable length: 6m, 10m, 17m, 25m, 50 m. If sensor is constantly responding to high water levels, replace it with a level sensor.

Available articles are: WDC 50, WDC 25, WDC 17, WDC 10 or WDC 6.

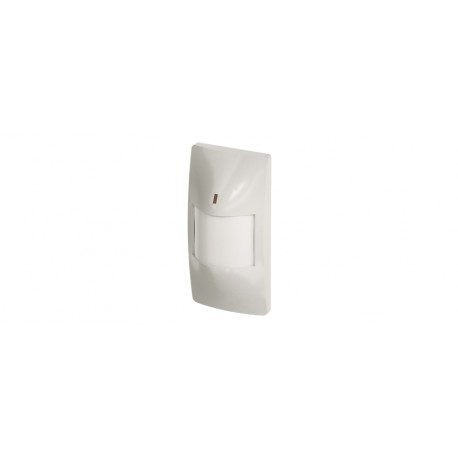

VT570 / PIR Sensor

vt570 pir sensorSensor is needed for control of movement over an infra-red range.

Dimensions Size 105 × 57 x 40 mm
Weight 133 g
Inputs RJ-12 / RJ-11
Status Indicators Error LED
Operating characteristics Temperature : Min. -10° C - Max.80° C, Humidity : Min. 5% - Max. 95% (Non-Condensing)
Mounting Mounting bracket included
Power Consumption 100 mW
Components Manufactured in E.U.
Max. distance 50 m
HS Code 8531 80 950
Special Features IR detection angle: 110°, Max. IR detection distance: 12 m Cable length: 2m
